SONOREX CNP 28-2 – water baths
PRODUCT PRICE
DESCRIPTION
DESCRIPTION
Effective cleaning using the CNp process (Cyclic Nucleation Process), a combination of ultrasonic and pulsed vacuum cleaning in a compact device.
For the residue-free cleaning of complex components, capillary cavities, hoses or bulk goods.

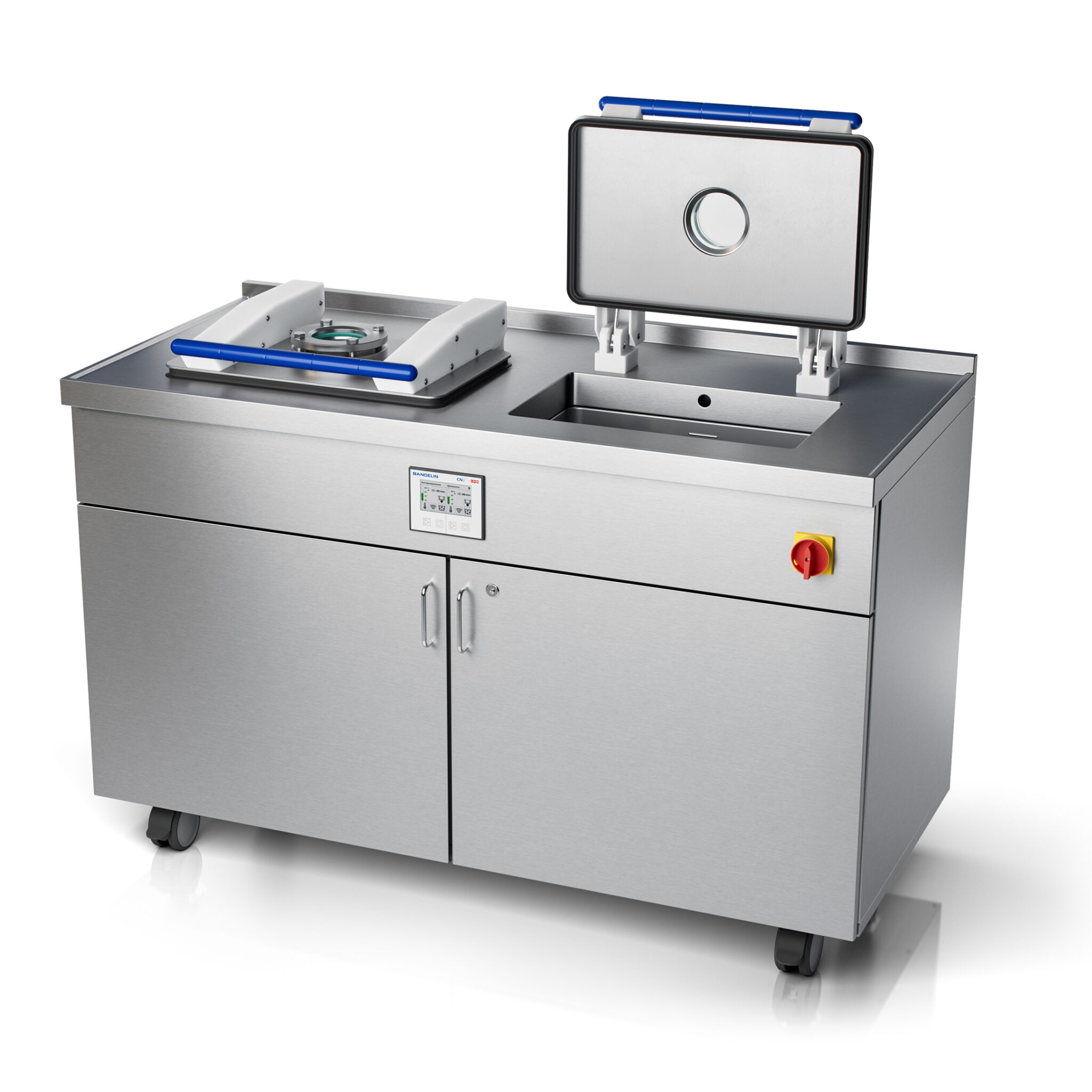

High-performance ultrasonic baths with pulsed vacuum
– After almost three years of development, BANDELIN and LPW created the first mass-produced cleaning device that combines the advantages of ultrasound and pulsed vacuum cleaning in a compact design.
– This means that highly effective cleaning processes can be implemented economically even at low throughput rates.
– The uncomplicated setup, low-maintenance operation and user-friendly operation make the universal compact device even more efficient.
– Versatile for cleaning in machining and additive manufacturing, the processing of complex laboratory equipment, in medical device manufacturing and electronics.
EASY SETUP
– Plug in the mains plug (three-phase current), connect the waste water connection, ready for use
DOUBLE TUB VERSION
– Intensive cleaning and rinsing at the same time or 2x cleaning or 2x rinsing
DIGITAL CONTROL UNIT
– Ergonomically designed user interface, hygienic touchscreen operation
SAFE AND DEFINED OPERATION
– Automatic temperature control, time program and level monitoring
LOW MAINTENANCE
– The ultrasonic system and the control are maintenance-free; the vacuum pump is serviced annually
ENERGY SAVING
– Also for low cleaning volumes
ACCESORIES
– For optimally coordinated ultrasonic cleaning, suitable baskets, lids and cleaning and disinfection concentrates are available as accessorie
Modern touchscreen
– Split screen for individual display of the temperature and remaining program time of the respective tub.
– The tubs can be activated individually or simultaneously using the quick function buttons, start and stop.
– To conveniently exchange the bath liquid, the tubs can be emptied at the push of a button.
– After entering the password, individual process parameters such as the bath temperature and the program running time can be configured.
– In addition, the vacuum, ultrasound and heating functions can be deactivated for certain cleaning processes.
Lid with sight glass
– Easy-to-use hinged lids with gas pressure springs for comfortable opening and closing.
– The integrated sight glass enables direct process observation when setting up the device.
– The stable design of the support arms ensures high durability under the load of the cyclic vacuum.
– Due to its own weight, an initial tightness of the lid is achieved, which increases after the vacuum is activated. This ensures simple and safe operation.

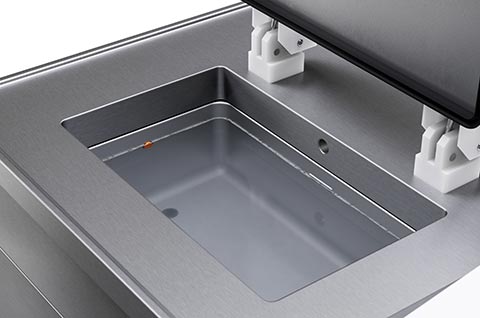

Level sensor
– During the cleaning process, the bath liquid continuously evaporates.
– Ensuring that the filling level in the cleaning tub is sufficient at all times is monitored by the capacitive filling level sensor.
– If the filling level falls below the minimum level, the cleaning process is interrupted, the heating is deactivated and a warning message is displayed.
