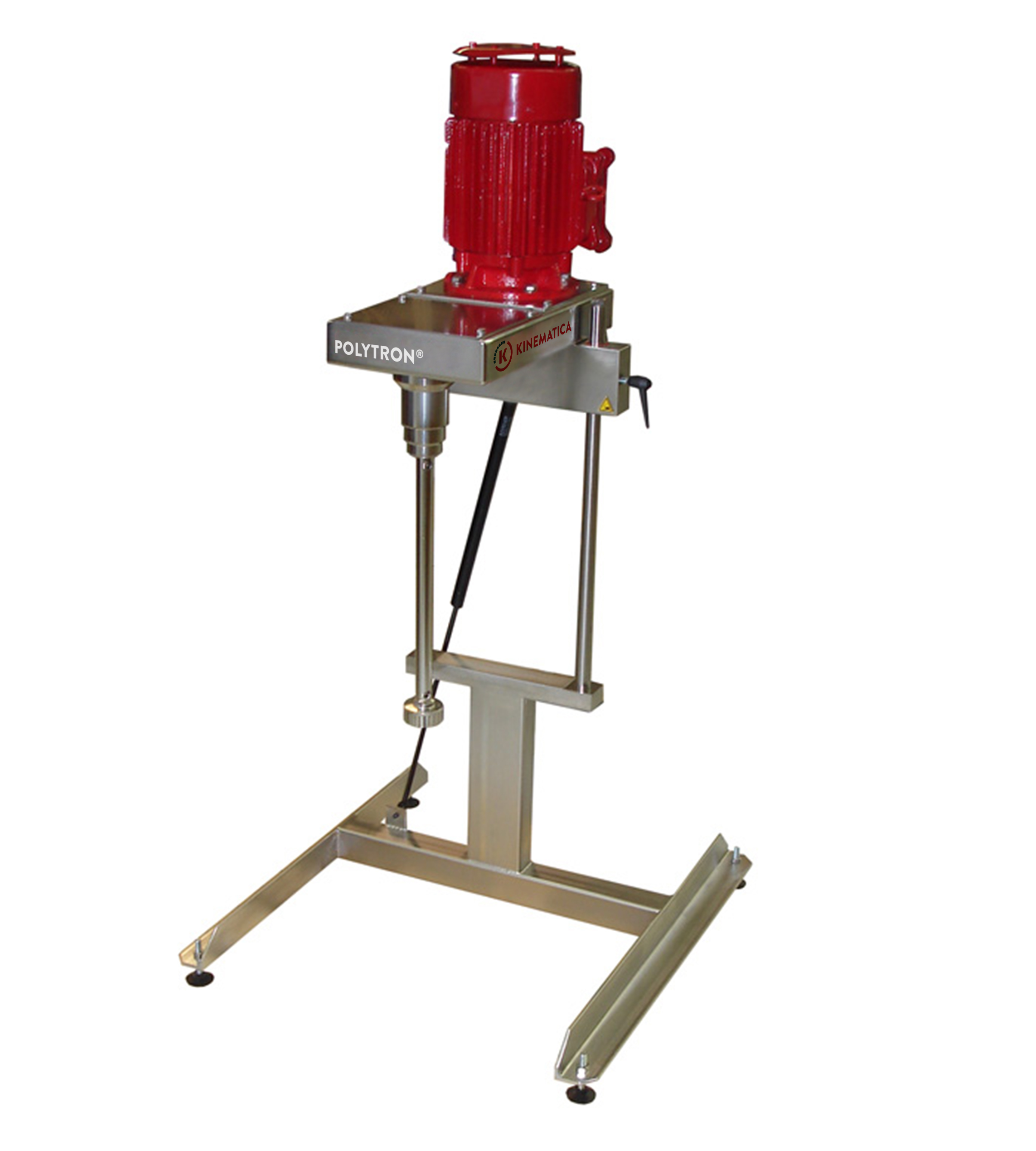

POLYTRON PT-DD 36-60 – Dispersion unit for pilot plant

– Drive Unit incl. high frequency three phase motor 3.0kW and frequency inverter for speed control (with display, main switch and potentiometer), with electicalstand (230V) and H-Foot base from anodized aluminum, CEE16 power cable, 5m

– This POLYTRON® is ideal for applications up to 50 liters and for users who need to scale up from research and development to pilot plant or small production scale processes.

– The aggregate is one of the most important elements when scaling up.

– This unit has a great deal of versatility in the size and numbers of aggregates that can be successfully used with it.

– It can accommodate both the smaller laboratory aggregates and the larger ones used for pilot plant and small production applications.

– This permits the direct comparison of results between the smaller and larger aggregates which makes the scale up decision much easier.

– This unit has also found great utility for applications requiring the multi-toothed rotor and stator in more viscous solutions because it can supply the higher torque required for turning the rotor at a sufficient speed for efficient homogenizations.

Benefits

– Application volumes up to 50 liters
– Available with 1 500 up to 4000 Watt high torque motors
– Motor speed controllable from 500 to 12,000 rpm
– Aggregate tip speeds up to 34 m/s produce the finest particles possible
– Available with electrical stand for easy raising and lowering of motor
– Constant rotational speed regardless of load changes because of the higher torque motor
– Integrated overheating and generator blocking protection
– Aggregate replacement using one-handed quick-release coupling
– Insulated motor housing keeps motor noise to a safe, approved level during operation
– Various models of dispersing aggregates which are Easy-to-Clean and designed for many different applications
– EX version available upon request

Technical information

– Volume min.(ml): 30 000
– Volume max.(ml): 50 000
– Power (W): 3 000
– Tip speed: Up to max. 34 m/s
– Speed range: 500 – 12 000 rpm
– Drive coupling: Aggregates with F coupling
– Connection voltage: 3x 400 V ± 10%, 50 Hz
– Relative humidity (max.): 80 % during storage / 80 % during operation
– Operating temperature: 0 – 40 °C
– PC Interfaces: Digital / stepless
– Protection class acc. to DIN: IP 55
– Weight: 44 kg
– EMC standards: IEC / EN 61000-6-2 / EN 61000-6-3 / 61326-1
– Safety standard: IEC / EN 61010-2-51
